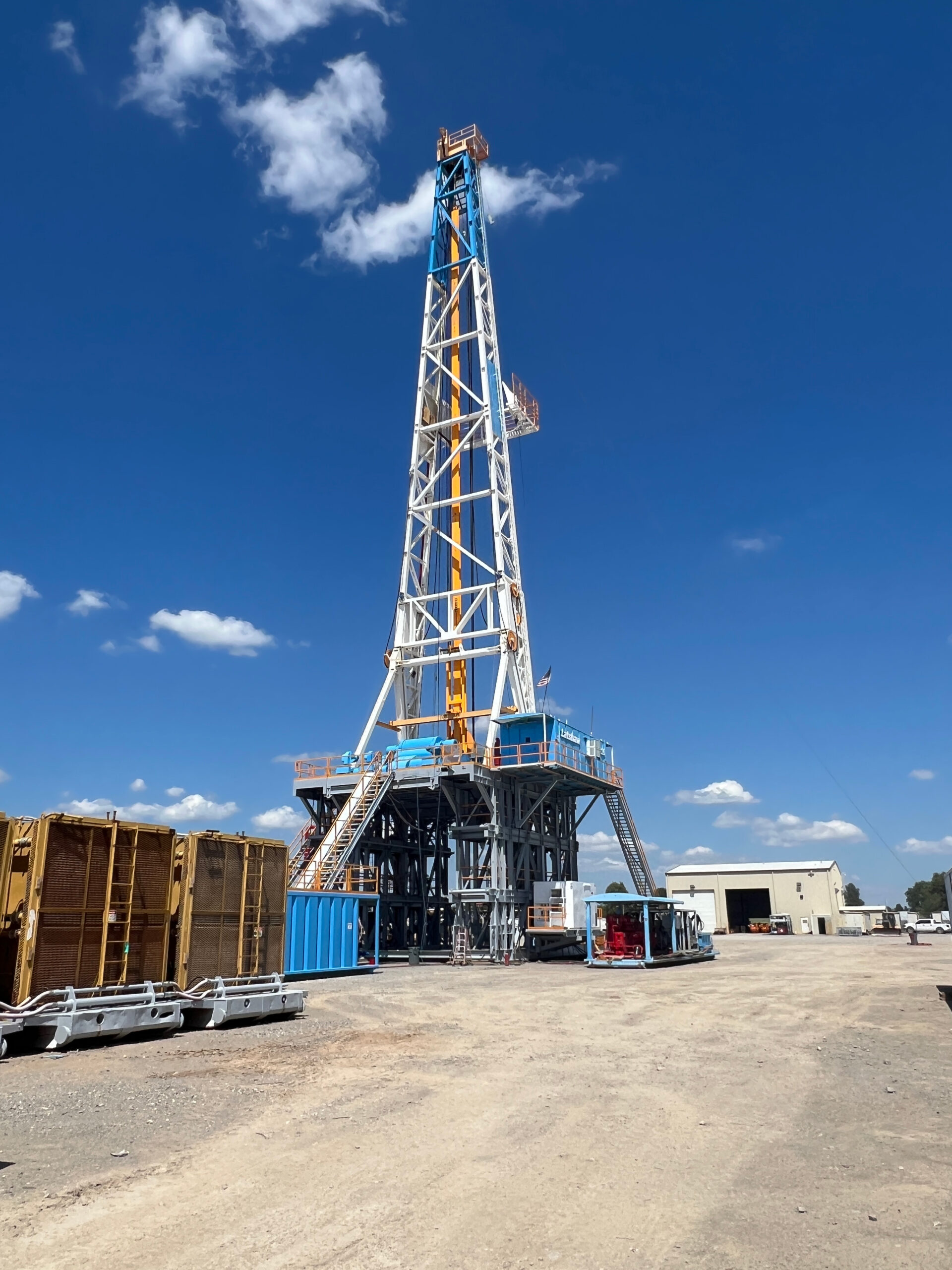

Latshaw Rig 16
Price on Request
- Condition: Used / Refurbished
- Location: Stillwater, Oklahoma
| MAST | IDS 154’ |
|
| HOOK LOAD | 1,400,000# | |
| RACKING CAPACITY | 33,000’ 5” / 30,000’ 5 1/2” | |
| SUBSTRUCTURE | Box on Box 30’ |
|
| CAT IV INSPECTION MAST / SUBS |
|
|
| CLEAR HEIGHT | 25'8" | |
| LOAD RATINGS | 1,400,000# Casing / 800,000# Setback | |
| RIG WALKING SYSTEM | Veristic Walking System (Optional) | |
| PAD CAPACITY | 150’x40’ x, y Axis |
| DRAWWORKS | National 1625 DE (3000HP) driven by (3) GE 752 (1,000) motors |
|
|
| AUXILIARY BRAKE | Baylor 7838 |
| |
| HOISTING CAPACITY | 1,420,000# w/ 14 Lines, 1,250,000# w/ 12 Lines, 1,075,000 w/ 10 Lines | ||
| TRAVELING BLOCK | Cont. Emsco 650 Ton - 1 ½” |
|
|
| TOP DRIVE | NOV TDS-11SA 500 Ton |
| ROTARY TABLE | SJPetro 37 1/2” Rotary / Hydraulic Driven |
| |
| IRON ROUGHNECK | Varco ST-80C |
|
|
| HYDRAULIC CATWALK | Forum |
|
|
| ROTATING MOUSE HOLE |
|
|
| ENGINES | (4) Caterpillar 3512 |
|
|
| BI-FUEL | NA | ||
| GENERATORS | (4) Kato 1365kw |
| |
| SCR System | (4) Omron Generator Bays / (4) SCR Bays |
|
|
| MUD PUMPS | (2) HHL-1600HL (1600HP) & (1) NOV FD-1600 (1600HP) all w/7500 psi Fluid Ends |
|
|
| KELLY-VIBE HOSE |
| ||
| FLUID ENDS / DELIVERY SYSTEM | 7,500# WP PSI Fluid Ends and Delivery System | ||
| CHARGING PUMPS | (3) 6x5x14 60HP |
| |
| PITS | (600 bbl) Four-Compartment w/ (3) Agitators, (600 bbl) Four-Compartment w/ (4) Agitators |
| |
| TRIP TANK | (100 bbl) One-Compartment Tank w/ 10HP Agitator & 4x3x13 Pump w/ 30HP Motor |
| |
| SHALE SHAKERS | (3) Brandt King Cobra Linear Motion |
|
|
| DEGASSER | Brandt D-1000-C |
| |
| DESANDER | NOV Brandt 3-10’ Cones |
| |
| DESANDER PUMP | 6 x 8 Centrigugal 100HP | ||
| DESILTER | NOV Brandt 20-4” Cones |
| |
| DESILTER PUMP | 6 x 8 Centrigugal 100HP | ||
| MUD MIXING PUMPS | 6 x 8 x 14 75HP |
|
| ANNULAR | TBD | ||
| SINGLE RAM | TBD | ||
| DOUBLE RAM | TBD | ||
| ACCUMULATOR | Church Energy / Type 80 / 6 Station / 180 Gallon |
|
|
| CHOKE MANIFOLD | 10,000 psi |
| |
| MUD/GAS SEPARATOR | Poor Boy Degasser |
|
| HYDRAULIC POWER UNIT |
|
|
|
| HOISTS |
|
|
|
| DRILLING WATER TANK | 500 bbl |
| |
| DIESEL TANK | 18,000 gal |
| |
| SCREW AIR COMPRESSORS |
|
